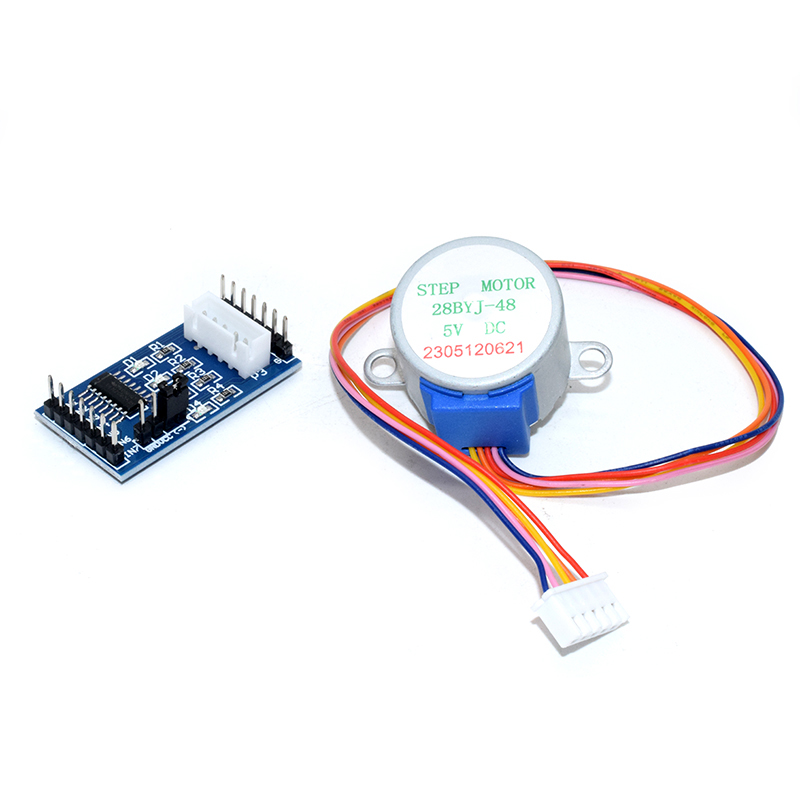

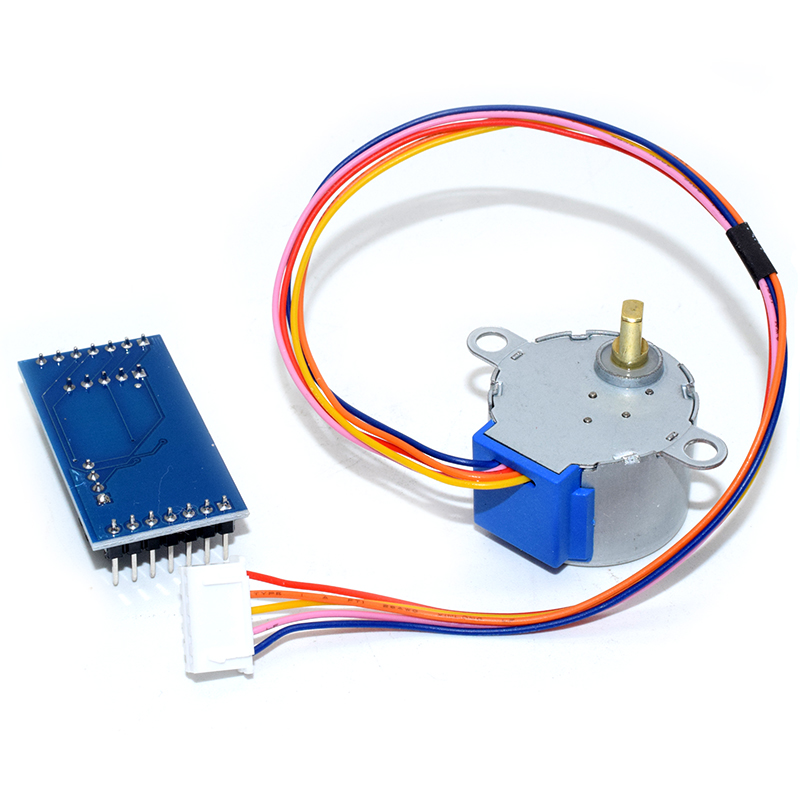

Blue board ULN2003 stepper motor driver board + 5V stepper motor

Motor Features:

Diameter: 28mm

- Voltage: 5V

- No-load pull into the frequency: >600Hz

- Phase: 4 - No-load pull-out frequency: >1000Hz

- Reduction ratio: 1/64 - Pull-in torque: >34.3mN.m (120Hz)

- Step Angle: 5.625 x 1/64

- Self-positioning torque: >34.3mN.m

- DCR: 200ohm +/- 7% (25'C) - Temperature: <40K (120Hz)

- Insulation resistance: >10Mohm (500V)

- Noise: <40dB (120Hz, No load, 10cm)

- Dielectric Strength: AC 600V / 1mA / 1s


- Insulation Class: A

- Cable length: 24cm

- Suitable for guide wind deflector, portable air conditioner valve, etc

Driver Module Features :

Lead out all the connection pins, convenient to use Specification Onboard ULN2003A motor driver chip;

Power supply: 5~12V; Onboard 4-channel signal indicator light; Onboard XH-5P connector, can connect to the 28BYJ-48 step motor directly; PCB size: 40.5 x 21.3mm Application Onboard XH-5P connector, can connect to the 28BYJ-48 step motor directly

Application:Stepper Motor Driver Test, Various types of electronic products or DIY lovers
