Product description Feature: 1.MA MB MC phase line output connection motor 2. 5V GND motherboard comes with original 3.VCC GND external DC power supply line 4.SC pulse signal output 5.Z/F positive inversion control line 5V or GND to achieve positive and negative inversion 6.VR speed signal input, the general external 100K tripod middle pin potentiometer VR the remaining two feet 5V and GND main board. Specifications: Working voltage: 5-36V Maximum current: 16A Maximum power: 350W Over current protection Size: length 63mm x width 45mm x height 27mm Quantity: 1 Set Note: Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
6.5-50V high power 380W BLDC three-phase DC brushless without Hall DC motor controller PLC
The drive is a DC three-phase brushless and Hall-less control board, and the motor can work normally without Hall
Ultimate upgrade BLDC wide voltage 6.5-50V high power 380W DC three-phase high-speed brushless sensorless controller, newly added PWM signal input Support 3.3V PLC 0-5V analog signal control
Main board specifications:
Product name: 380W Brushless DC Motor Controller without Hall
Model: ZS-X11F
Working voltage: 6.5-50V
Drive current: rated 16A plus air cooling 30A
Maximum power: 380W
Overcurrent protection: none (requires external fuse)
Stall protection: yes (current will automatically decrease after stall)
Over-temperature protection: yes (over-temperature over 100 degrees, power is reduced by half)
Maximum speed: 224000 RPM (2 pole motor), 74000 RPM (6 pole motor), 40000 RPM (12 pole motor), 35000 RPM (14 pole motor).
Product size: length 63MM * width 45MM * height 31MM
Weight: about 76g

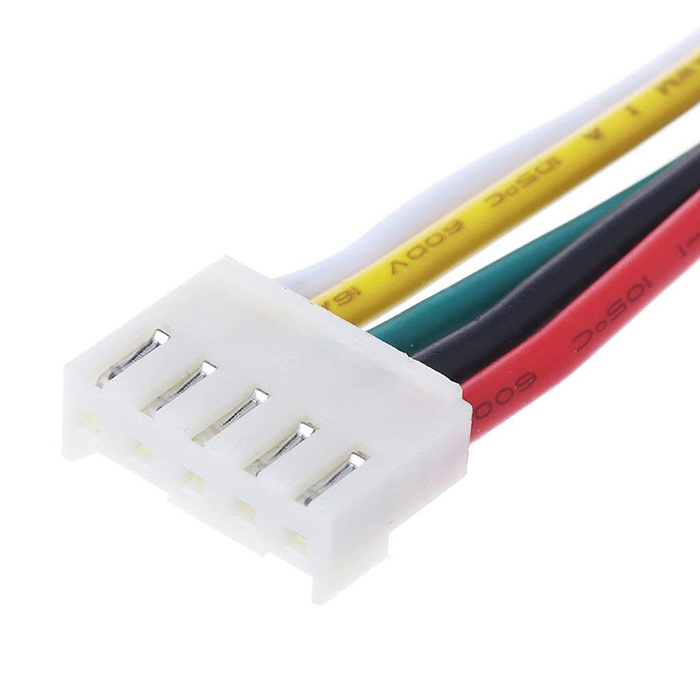

Interface Description:
1.U V W phase line output connected to motor
2. 5V GND motherboard comes with power supply (current does not exceed 300MA)
3. VCC GND motor main power supply (external DC power supply)
4.SC speed pulse signal output
5. DIR forward and reverse control (lead switch can be connected externally)
6. BRAKE brake control (lead can be connected externally)
6.0-5V PWM speed control signal input (the on-board potentiometer for speed control can also be switched to an external 0-5V analog PWM duty cycle signal input speed control via a jumper)
