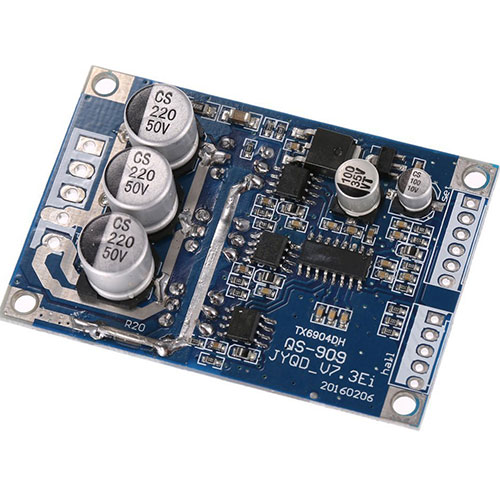

JYQD-V7.3E DC 12V 24V 36V 500W Brushless Motor Controller Hall Balanced Car Driver Board

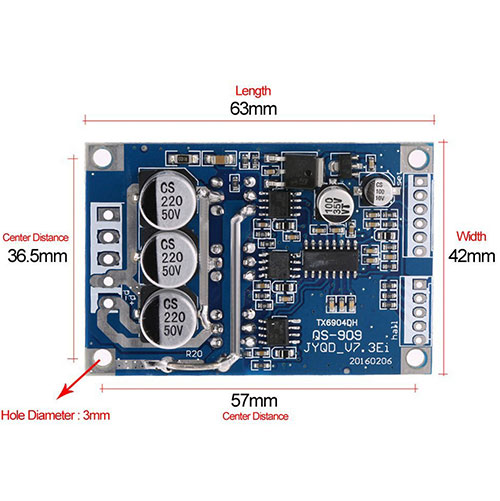

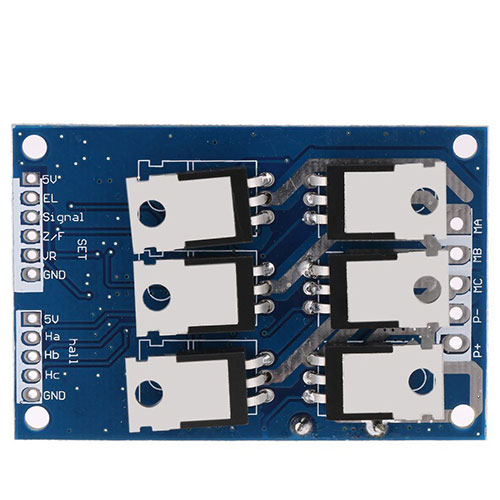

product description Product Specifications: Working voltage: DC12-36V Working current: ≤15A Drive power: ≤ 500W Speed ??voltage: 0.1V-5V Operating temperature: -40 ~ 85 ℃ Humidity: ≤90% RH Stall protection: yes Enable control: yes Excess current protection: yes Steering control: yes Speed ??control signal: yes Printed circuit board size: 63 * 42 * 17mm Weight: 30g Power Terminal OUT: VCC (positive supply) GND (negative one) MC (motor phase) MB) MA (motor phase U) SET for the control side: GND control terminal is grounded VR governor end 0-5V (corresponding to the motor speed 10% - 100%) ZF reverse control (then 5V or ground can change the motor rotation direction) M Tachometer pulse output (depending on the motor pole number corresponding to the output number of pulses per revolution) EL enable control terminal (connect 5V or ground, 5V ground, the motor stops grounding) Hall terminal Hall: 5V, Hall positive power Hall signal Hb, Hall signal Hc, Hall signal GND, Hall negative Note: Due to different Hall motor manufacturers, the Hall line sequence may be different from the picture display and needs to be adjusted. If the wrong line, it will not work properly, such as abnormal startup, high current burnout drive board. Tip: If you use less than 60W, do not need additional heat sink; more than 60W be sure to add heat sink. When installing the heat sink, attention must be paid to the 6 pieces of MOS insulation on the back of the module. It will permanently damage the driver board, but will not be insulated. packing list: 1 * brushless motor controller product information technical details Product weight 1.6 ounces Package size 6 x 5 x 0.6 inches
