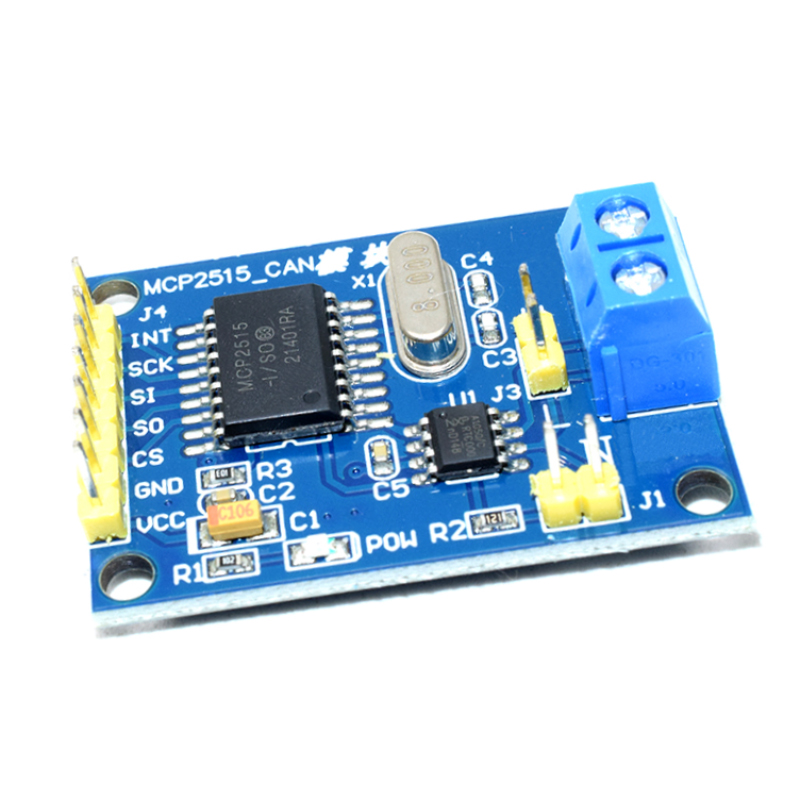

MCP2515 CAN Bus Module TJA1050 Receiver SPI Protocol

product description 1, support CAN V2.0B specification, communication rate 1Mb / S 2,0 ~ 8 Byte data field 3, standard frame extension frame and remote frame 4,5V DC power supply module, SPI interface protocol control 5, 120 ohm termination resistor. Impedance matching, guaranteed driving ability, long-distance data transmission, prevent signal radiation 6, module size: 4.4cm x 2.8cm screw hole center distance 23mm * 35mm 7, the working current: 5mA typical, 1 μA standby current. In addition to the power indicator 8, working temperature: industrial grade 85C -40C 9, CAN controller chip: Microchip MCP2515, high-speed CAN transceiver chip: NXP TJA1050 product information Package size 4.3 × 2 × 0.8 inches Product weight 0.32 ounces
