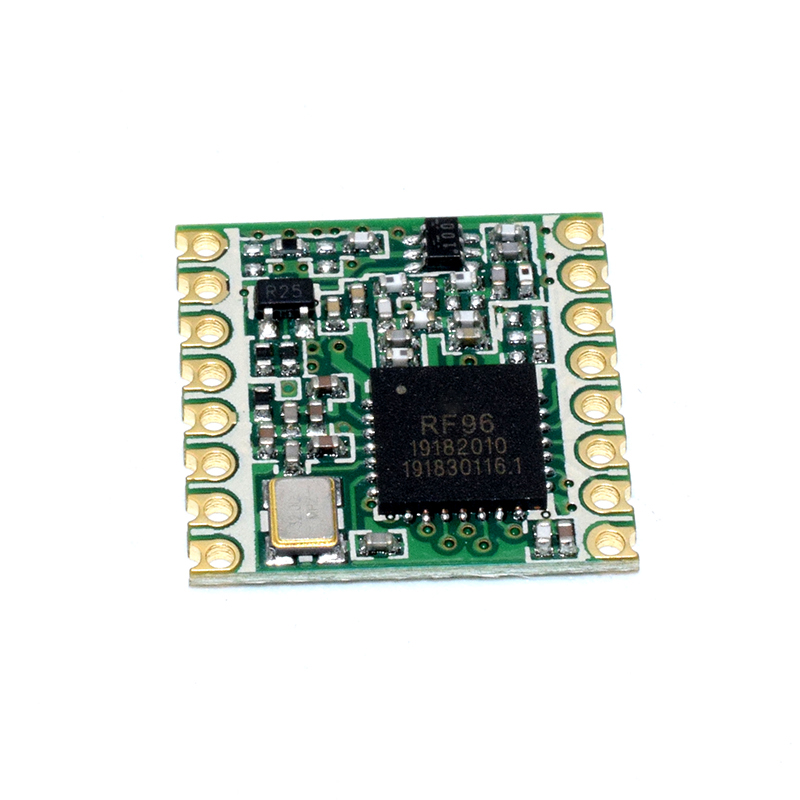

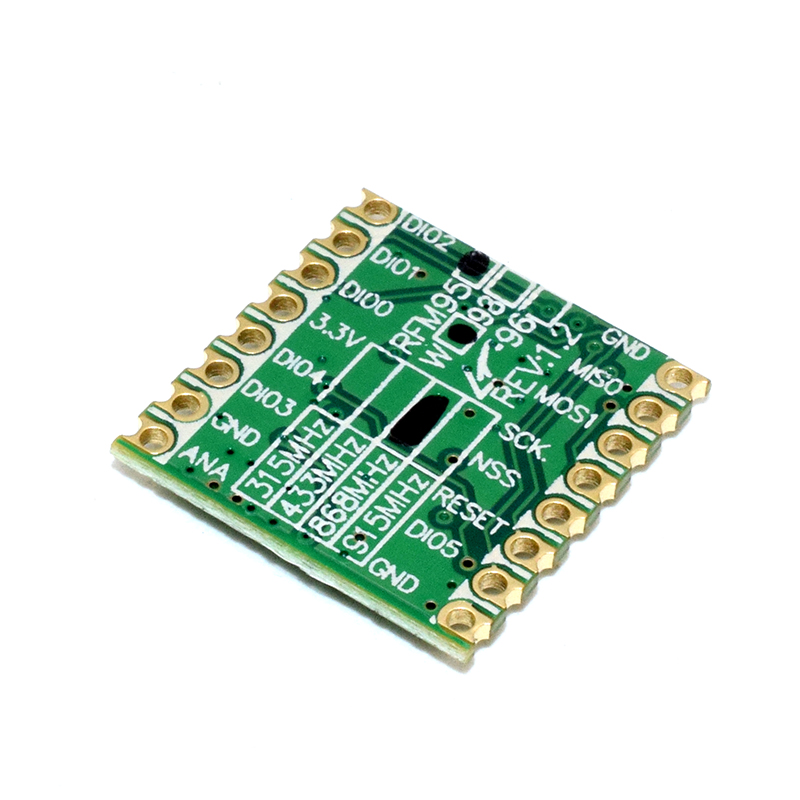

RFM95 Ultra-long Range Transceiver Module/LoRa Module/support 868M frequency

Product Features Programmable bit rates up to 300 kbps +14 dBm high efficiency PA Fully integrated synthesizer with 61 Hz resolution. Built-in clock recovery bit synchronizer Automatic RF Sensing and CAD Ultra-Fast AFC product description description The RFM98 transceivers feature LoRa ? remote modems that provide ultra-long-range spread spectrum communications and high immunity to interference while minimizing current consumption. Using the patented LoRa ? modulation technology, the RFM98 enables the use of low cost crystals and bill of materials for over-148 dBm sensitivity. The combination of high sensitivity and an integrated + 20 dBm power amplifier results in an industry-leading link budget, making it suitable for any application requiring range or robustness. In traditional modulation techniques, LoRa ? solves the compromise between traditional design range, immunity and energy consumption These devices also support high-performance (G) FSK modes including WMBus, IEEE802.15.4g. RFM98 has excellent phase noise, selectivity, receiver linearity and IIP3, significantly lower than the current consumption of competing devices. feature LoRa ? Modem. The maximum link budget is 168dB. +20 dBm - Comparison of 100 mW constant RF output with V supply. +14 dBm high efficiency PA. Programmable bit rates up to 300 kbps. High sensitivity: down to -148 dBm. Bulletproof front end: IIP3 = -12.5 dBm. Excellent blocking immunity Low receive current of 10.3 mA, 200 mA register is reserved. Fully integrated synthesizer with 61 Hz resolution. FSK, GFSK, MSK, GMSK, LoRa ? and OOK modulation. Built-in clock recovery bit synchronizer. Preamble test. 127 dB dynamic range RSSI. Automatic RF Sensing and CAD Ultra-Fast AFC. Packet engine up to 256 bytes of CRC. Built-in temperature sensor and low battery indicator. Module size: 16 * 16mm application: Automatic meter reading. Home and building automation Wireless alarm and safety system. Industrial Monitoring and Control Remote irrigation system
