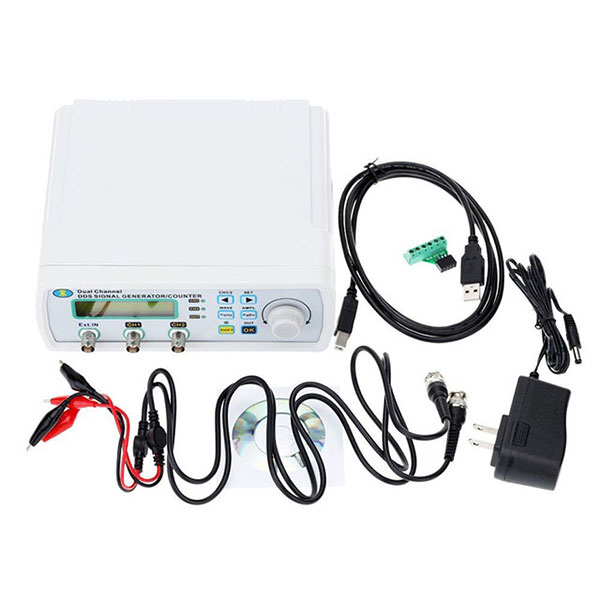

MHS-5200A 6MHZ

product description
description
This series of arbitrary waveform DDS signal generator is a high-precision, high-performance multi-function signal generator. The internal circuit using large-scale FPGA integrated circuits, high-speed MCU microprocessor and SMT, can greatly enhance the anti-jamming equipment and life expectancy. The LCD display is divided into two lines: the first line shows the current frequency and the next line shows additional parameters or functions. The instrument has great advantages in signal generation, scanning waveform, measurement parameters, etc. It is an ideal test or measuring instrument for electronic engineers, electronic laboratories, teaching and scientific research personnel.
feature:
???? Arbitrary and general function waveforms (sine / triangle / square / sawtooth and TTL signals) can be output.
???? All functions are digitally controlled, accurate and stable.

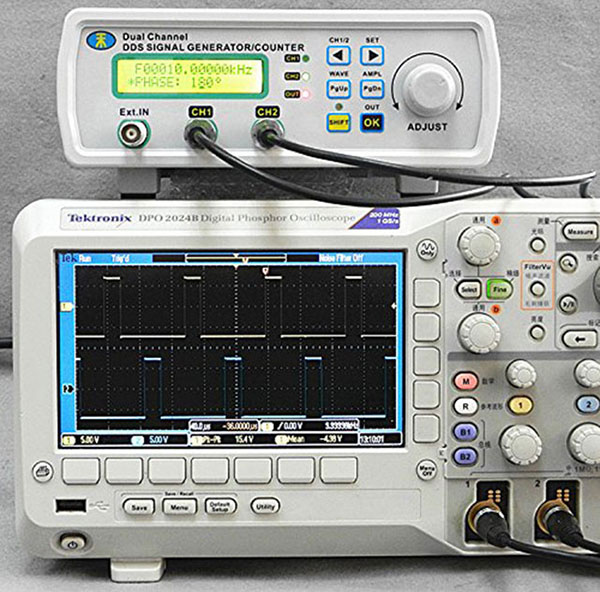

???? Dual output for simultaneous operation with adjustable phase difference.
???? Linear sweep (up to 999s) and logarithmic frequency sweep.

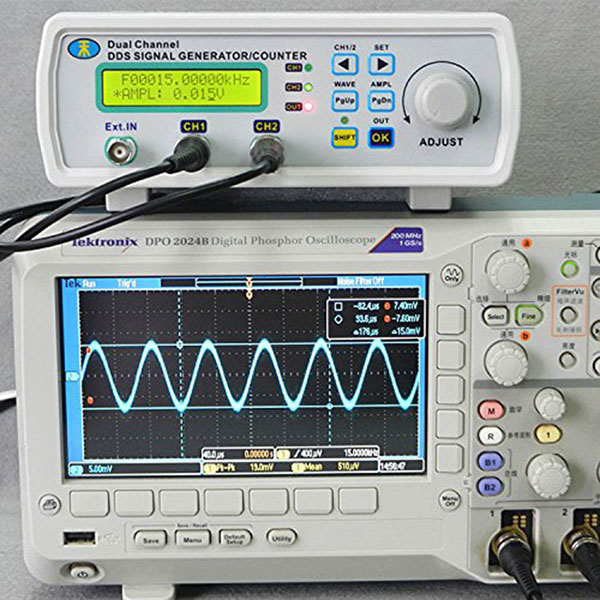

???? Both channel signals have a built-in precision -20dB attenuator to achieve a minimum amplitude resolution of 1mV.
???? 120% ~ + 120% DC bias function.
???? 4 TTL outputs (adjustable phase difference).
???? With frequency measurement, period measurement, positive and negative pulse width measurement, duty cycle measurement and counting functions.
???? The PC can be used to control the instrument when connected to a PC via the USB interface.
